Merge Sales FDC Fetching
- STEP 1: Open the MOT app.
 |
- STEP 2: Log in with your credentials (admin, username, and password).
 |
- STEP 3: Tap the Log in button
 |

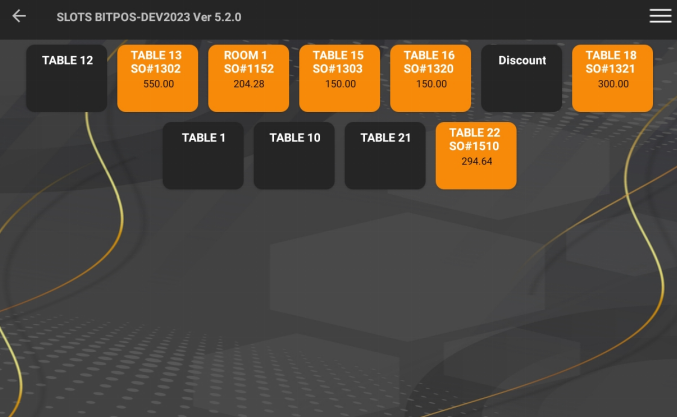

- STEP 4: Tap an available table slot or the one with the customer’s previous fuel.
 |
- STEP 5: Tap on an existing table slot.
 |

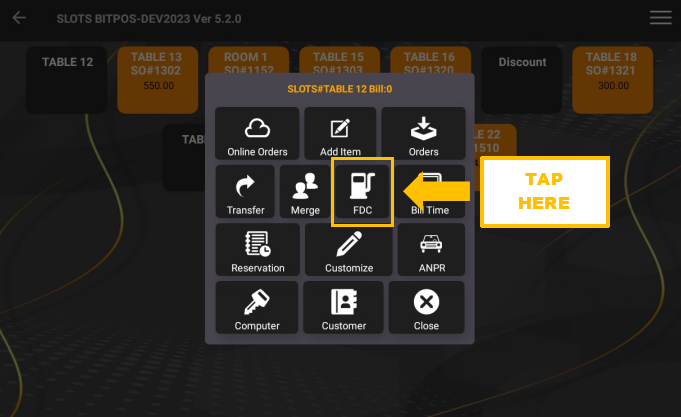

- STEP 6: Tap the FDC button on the screen.
 |

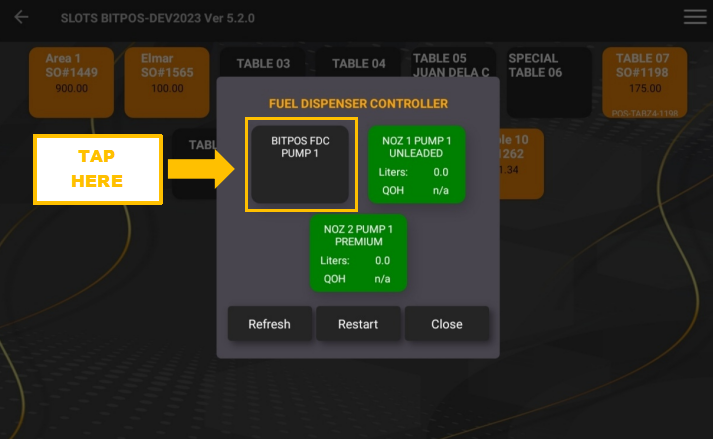

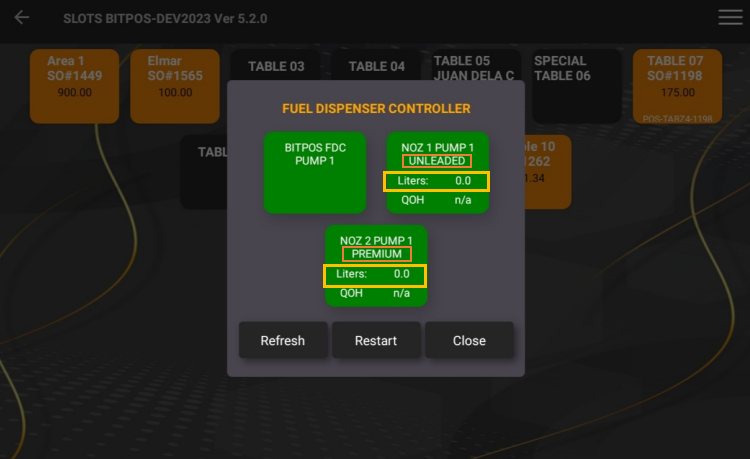

- STEP 7: Press the BitPOS FDC Pump 1 button until it turns green.
 |

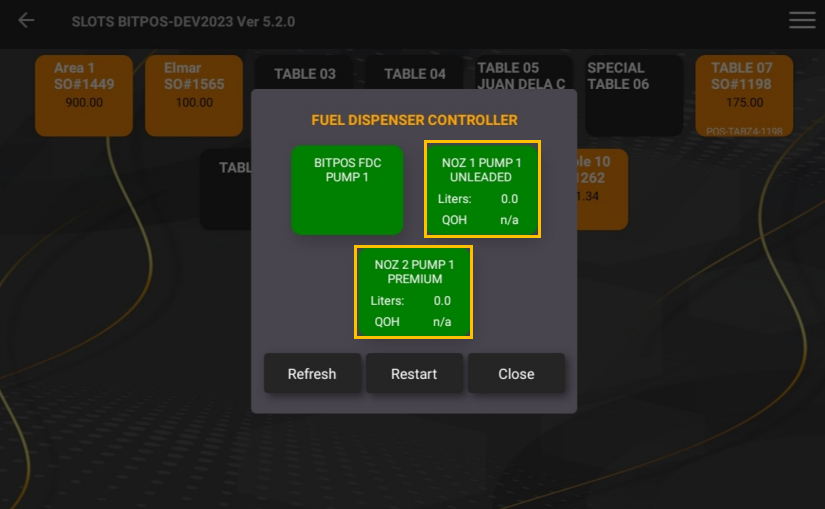

- STEP 8: Look at the Nozzle buttons and confirm they are also green.
 |
- STEP 9: Check each nozzle for its fuel type (e.g., Premium, Unleaded). Check the liters displayed on each nozzle (e.g., 0.0 if not in use).
 |

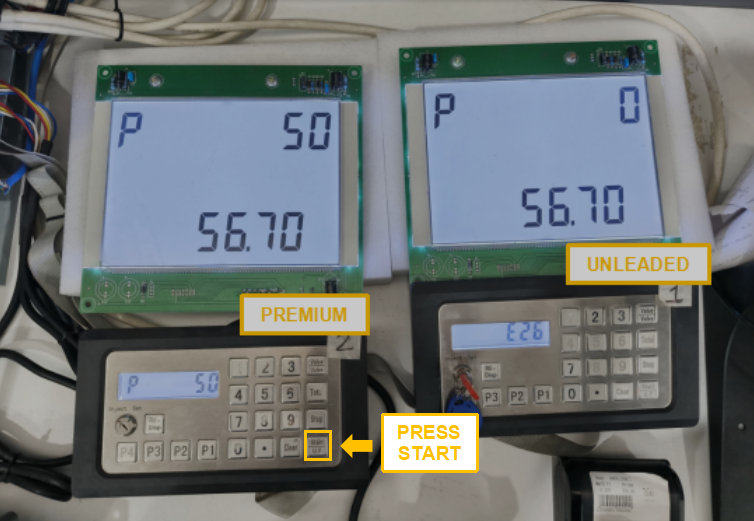

- STEP 10: Enter the Amount on the Fuel Dispenser Controller (e.g., 50). And Press START.
 |

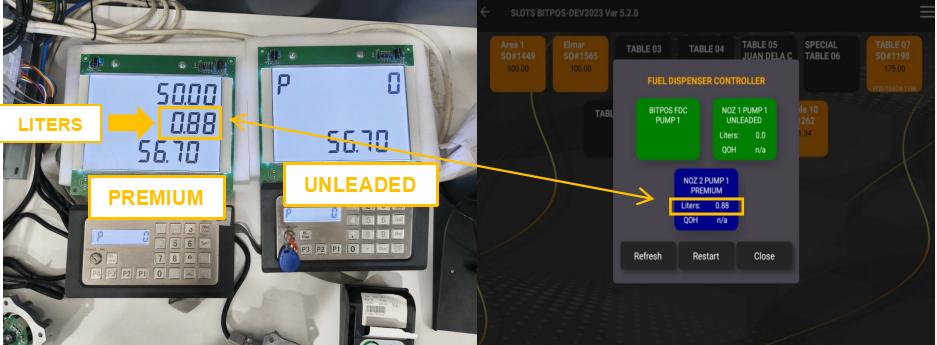

- STEP 11: Confirm the reading on the FDC screen matches the physical dispenser.
 |

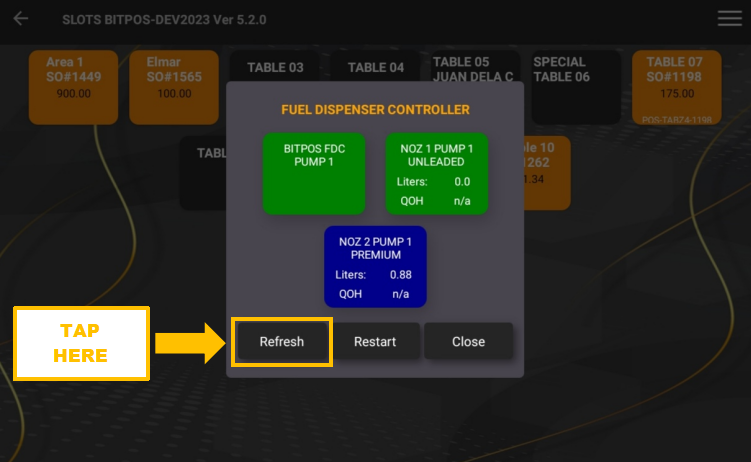

- STEP 12: When fueling is done, tap REFRESH to update the transaction.
- The new fuel amount will be added to the previous amount.
 |
- STEP 13: If the customer fuels again, repeat Steps 10–12 (Amount → Start → Refresh).
- Each time, the total will keep increasing.
- Do not tender yet.
Example:

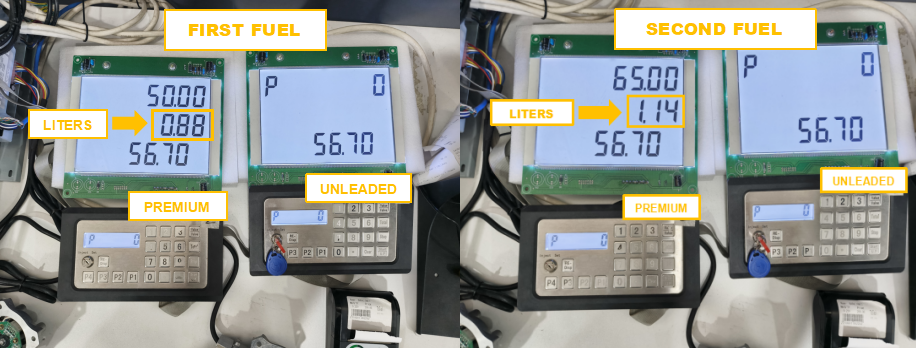

- First fueling = 0.88 liters
- Second fueling = 1.14 liters

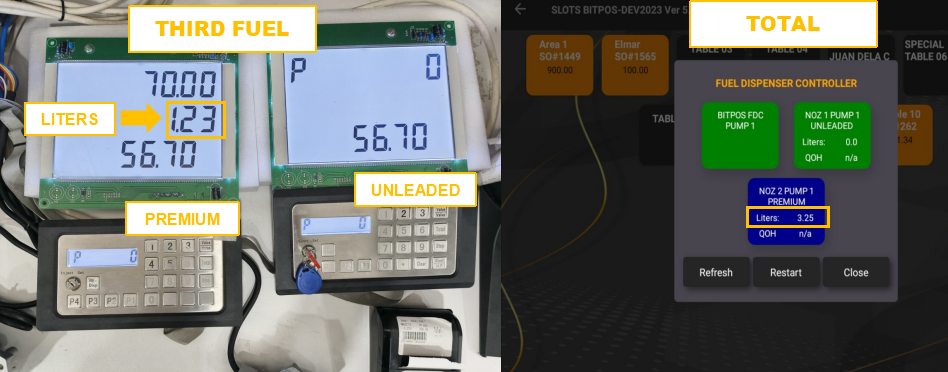

- Third fueling = 1.23 liters
- After REFRESH, total = 3.25 liters
 |
 |

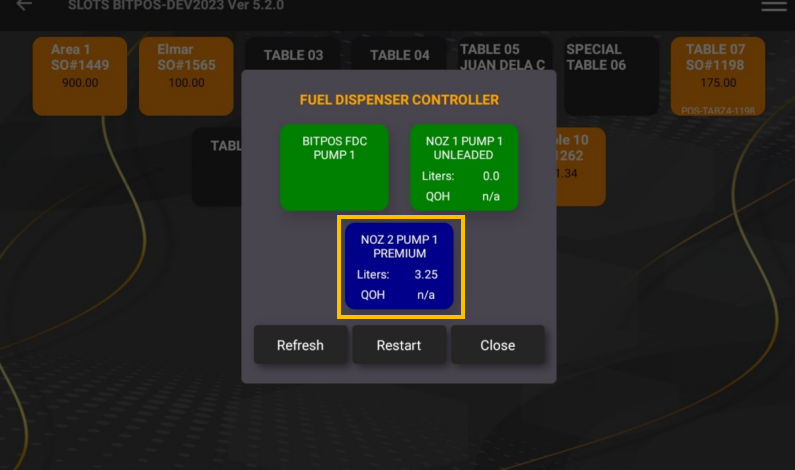

- STEP 14: To settle all merged transactions: Press the blue button to see the total amount.
 |

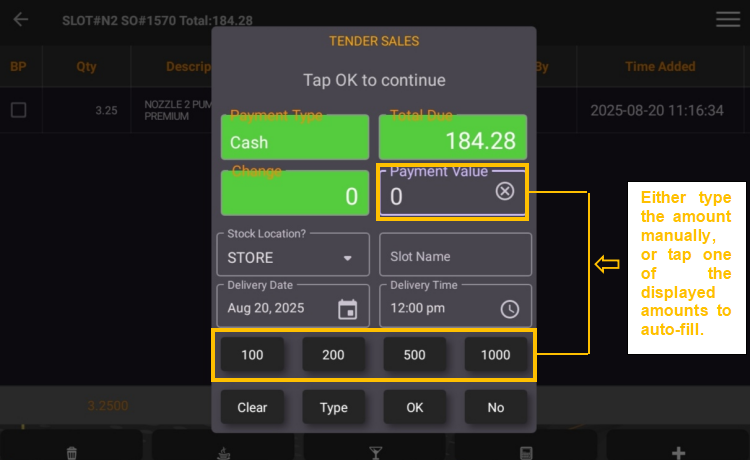

- STEP 15: Enter the Payment Value paid by the customer.
You can either type the amount or tap one of the suggested values displayed.
 |

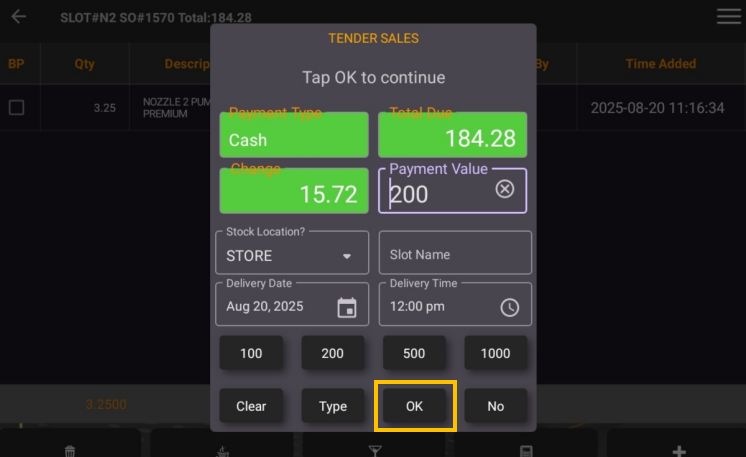

- STEP 16: Tap the OK button to confirm payment.
 |

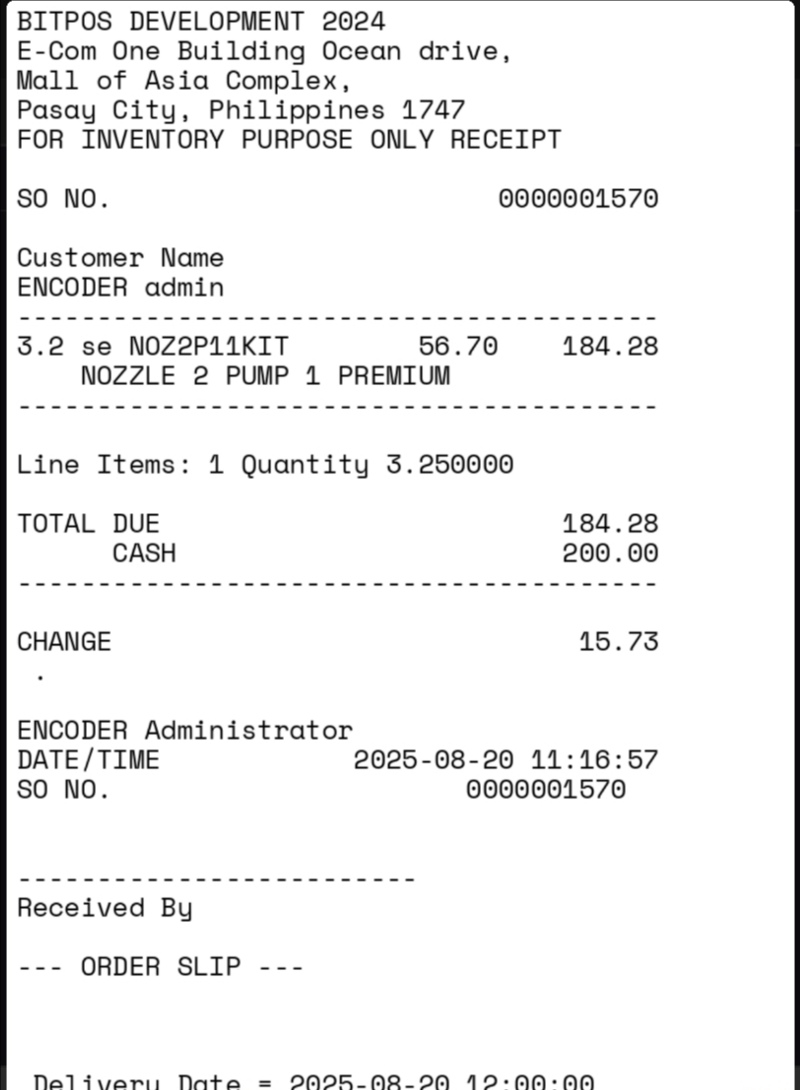

- STEP 15: A receipt will be printed if the customer requests it.
 |
