How to Set Up Cash Drawer to Printer

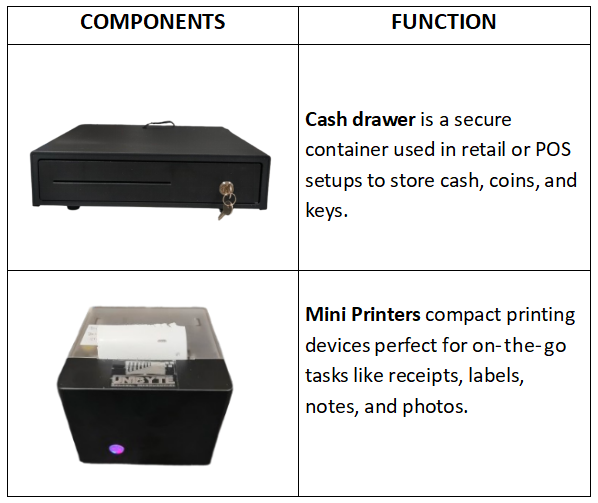

- FUNCTION:
- The cash drawer is a secure container used in retail or POS setups to store cash, coins, and keys.
- The mini printer is a compact printing device designed for printing receipts, labels, and transaction records.
 |

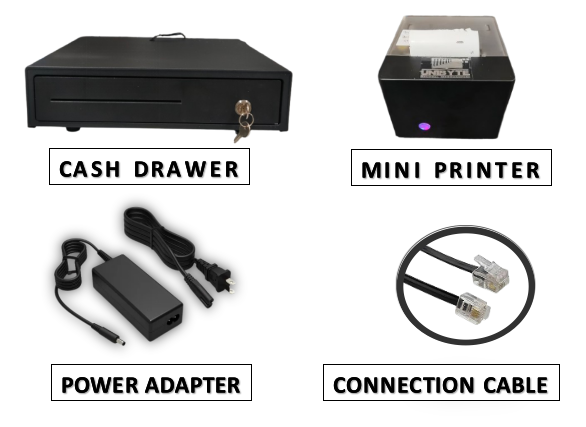

- COMPONENTS:
- Cash Drawer
- Mini Printer
- Power Adapter
- Connection Cable (RJ-11 or RJ-12)
 |

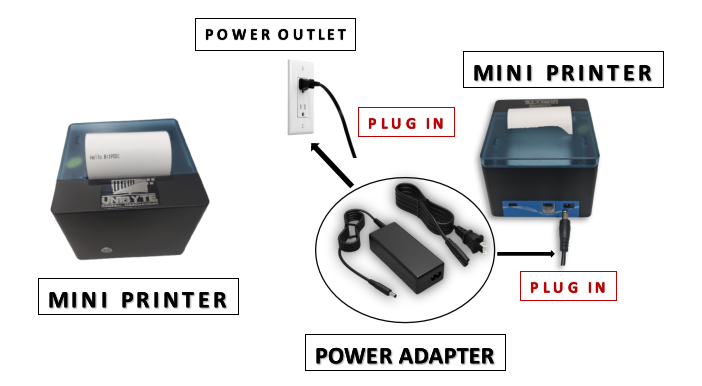

- STEP 1: Set Up the Mini Printer
- Connect the mini printer to a power outlet using the power adapter.
- Make sure the printer is turned on and properly connected to your POS or computer.
 |

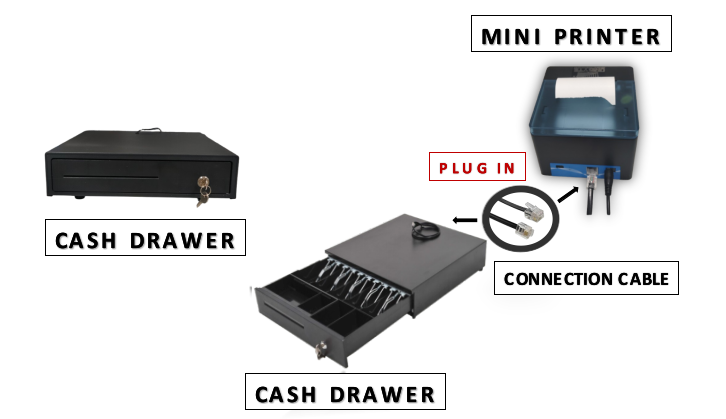

- STEP 2: Connect the Cash Drawer to the Printer
- Locate the RJ-11 or RJ-12 port at the back of your mini printer.
- Plug in the cable from the cash drawer to this port securely.
 |

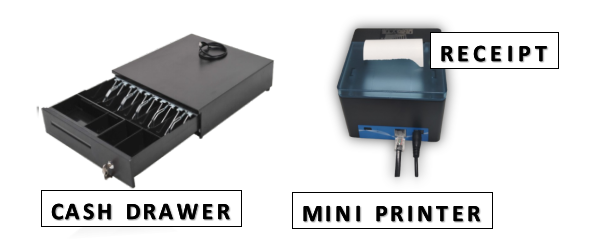

- STEP 3: Test the Connection
- Print a test receipt from the printer.
- The cash drawer should automatically open once the receipt is printed.
 |
